| DN | 胶管内径 | 胶管外径 | 工作压力 | 爆破压力 | 最小弯曲半径 | 重量 | |||
| inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
| 10 | 3/8 | 9.5 | 23.3 | 41.4 | 6000 | 165.5 | 24000 | 153 | 0.75 |
| 13 | 1/2 | 12.7 | 26.8 | 41.4 | 6000 | 165.5 | 24000 | 203 | 0.89 |
| 19 | 3/4 | 19.0 | 36.1 | 41.4 | 6000 | 165.5 | 24000 | 267 | 1.56 |
| 25 | 1 | 25.4 | 42.9 | 41.4 | 6000 | 165.5 | 24000 | 330 | 2.10 |
| 32 | 1-1/4 | 32.0 | 51.5 | 41.4 | 6000 | 165.5 | 24000 | 445 | 3.65 |
| 38 | 1-1/2 | 38.0 | 59.6 | 41.4 | 6000 | 165.5 | 24000 | 533 | 5.00 |

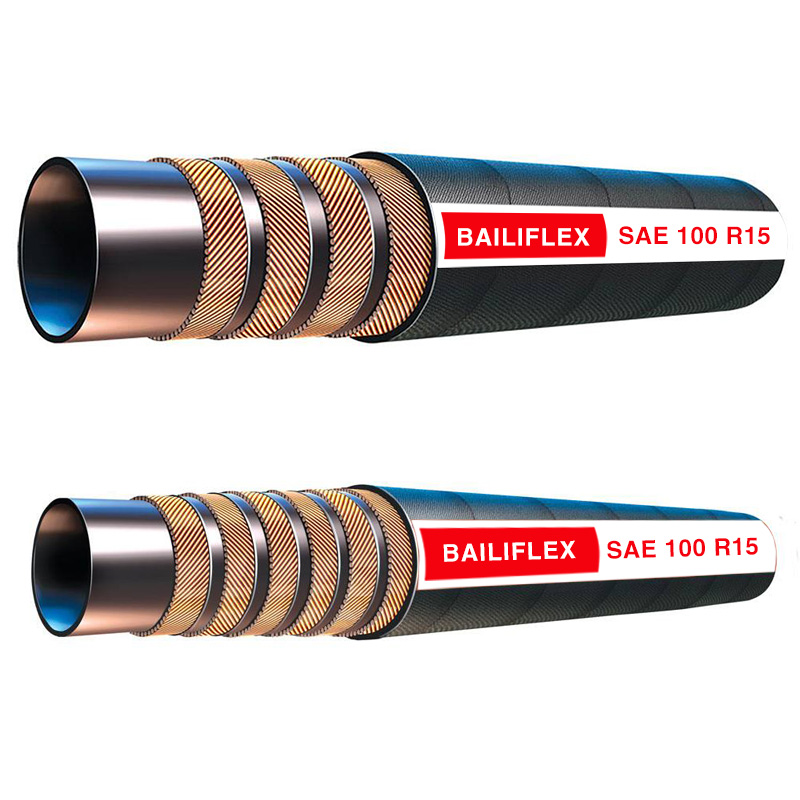

SAE 100 R15
内胶层：耐油合成橡胶
增强层：四层或六层高强度钢丝缠绕
外胶层：耐摩擦、耐气候的合成橡胶
温度范围：-40℃ to +125℃
